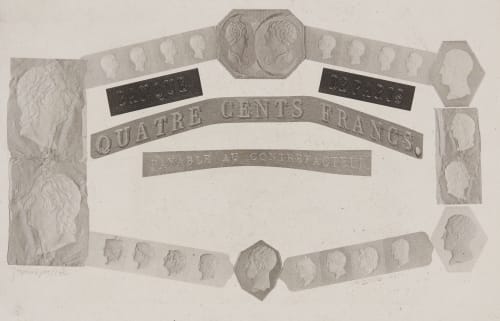

A pre-photography effort to make a mechanically generated picture of a three dimensional object. Inscribed imprimé par Aze / A. Collas 1832
This print from the collection of André Jammes appears to be an experiment by Collas using anaglyptography to make French banknotes.
In 1836 Collas developed a new machine that carefully copied, in mathematically precise reduction or enlargement, the relief and chiaroscuro of medallions and other bas-relief objects onto engraved steel plates, producing what he called a ‘numismatic engraving’ also known as Anaglyptograph. The anaglyptography process used a tracing arm which moved over a rounded object, such as a plaster cast of a medal, to produce by mechanical means an engraving which had an uncanny appearance of being embossed.
The nineteenth century was the age of relief medals. They were made to honor notable occasions and famous people, and were cast in multiple copies of great precision and beauty. In this banknote test, relief metals were used in combination to make a plate that could be used to print banknotes. The work was done with a anaglyptograph, a machine that uses a series of bars on pivots to trace forms and produce analogs of them in different sizes. Anaglyptographs were similar on principal to the pantograph – a machine used in silhouette-making, and to reduce or enlarge drawings and sculptural work. In this particular case the anaglyptograph was used to translate the vertical modulations of the medal’s surface into variously spaced lines scored in an etching ground. One end of the anaglyptograph ran over the medal and was constrained to run in a straight line only. When the operator raised the tracing stylus by moving it over the relief section of the medal, the line being drawn in the etching ground by the other end of the anaglyptograph was shifted slightly. By running the stylus repeatedly across the medal’s surface, and shifting each line minutely forward from the one before, the printer drew a topographical map of the medal on the prepared plate surface. Once etched, this plate could be inked, wiped, and printed. It is a remarkable process, and only understandable by looking at highly magnified sections. The changing spacing between the lines causes a lightening in areas that rise up on the left of the print; as the form begins to fall off on the right side, the line spacing is reduced and the tone darkens. The increasing and diminishing of the line spaces is perfect, so that the flat surround retains its even gray tone even while the lightening of the head on one side is perfectly compensated for by a darkening on the other. The viewer’s impression is that the medal has been lit from the left side—an apparently perfect lighting, coming not from one point but from parallel rays skating at a low angle across the surface of the medal.
This early test shows multiple distortions in the process which were later resolved.
